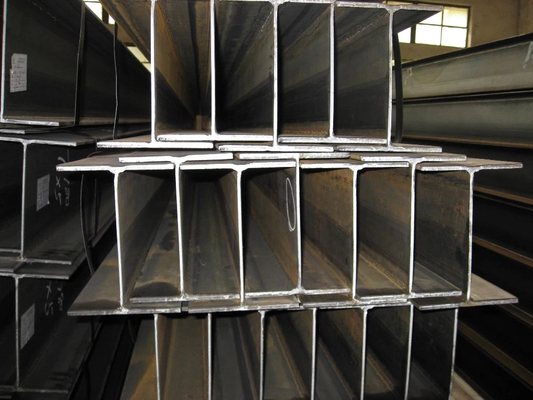

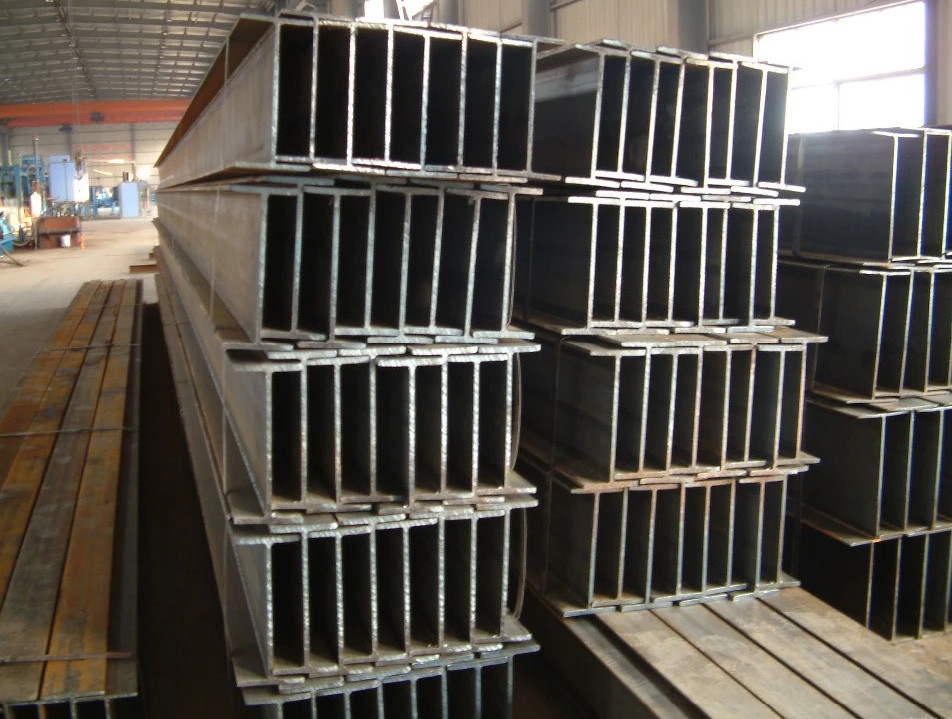

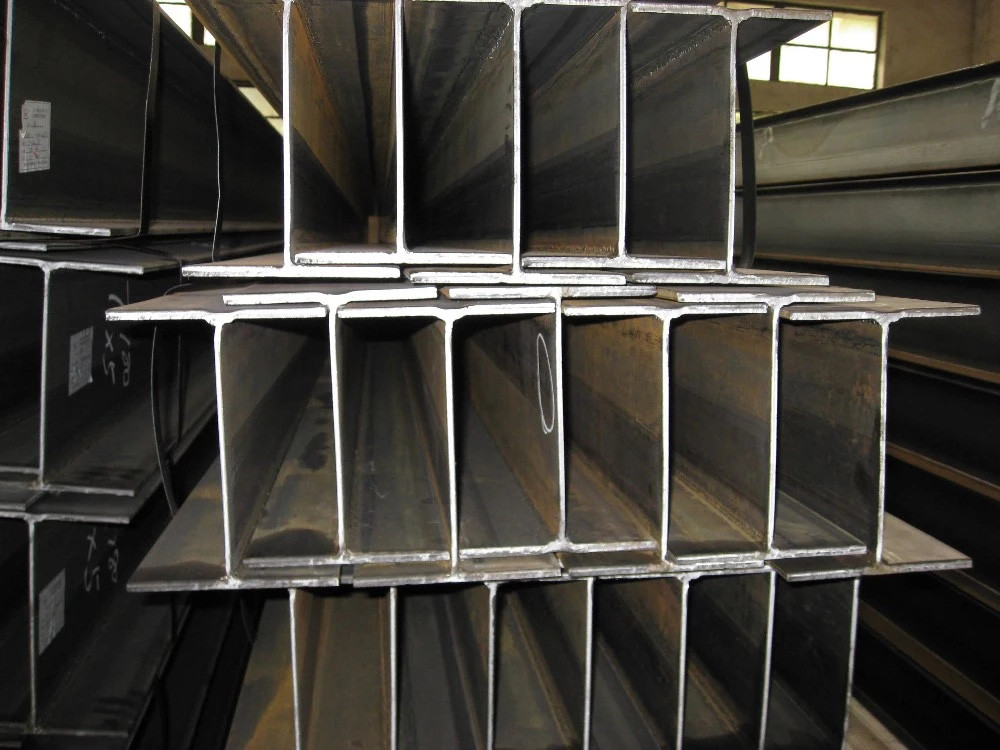

S275JR Structural H Beam 152x152 Mild Steel H Beam
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Structural Steel | Useage | Mechanical & Manufacture, Industry |
|---|---|---|---|
| Length Range | 6m,9m,12m, 6-12m | Processings | Welding And Cutting |
| Web Width Range | 100mm~900mm | Thickness Of Flange | 3.2-45mm |
| Highlight | S275JR Structural H Beam,H Beam 152x152 Mild Steel,S275JR Mild Steel H Beam |
||
Product Description
S275jr 152x152 Mild H Beam Steel StructureI Beam
Description:
S275jr 152x152 Mild H Beam Steel StructureI Beam
A structural steel frame is a key option when it comes to building a variety of building projects. These include low-rise office buildings, all the way up to larger, multi-story structures. Generally, structural steel framing entails creating different structural elements via a complex system of columns and horizontal beams.
With a wide range of different frame structures to work with, it is easy to understand why this has become the predominant method for much building construction. With this said, though, there are several subcategories to formed structural steel frame construction
Specification
|
Product Name
|
Structural Steel China Customized SS400 H-Beam Structural Beam Steel Stainless Steel I-Beam |
|
Place of Origin
|
China,shandong
|
|
Technique
|
Hot Rolled/Cold Rolled/Galvanized
|
|
Length
|
1-12m or customer request
|
|
Flange Width
|
50-400mm
|
|
Flange Thickness
|
4.5-23mm
|
|
Web Width
|
100-900mm
|
|
Web Thickness
|
5-16mm
|
|
Tolerance
|
土1%
|
|
Processing Service
|
Welding, Punching, Cutting
|
|
Steel Grade
|
Q235,Q345,G300 G350 S275JR,SS400,ASTM36,S235jr,S235jo etc.
|
|
Packing
|
By bundles with steel strips or as customer request
|
| Name | Model | Specifications | Theoretical weight (per meter) |
| Channel | 5# | 50*37*4.5 | 5.438 |
| Channel | 6.3# | 63*40*4.8 | 6.634 |
| Channel | 8# | 80*43*5.0 | 8.046 |
| Stainless steel channel | 10# | width: 100mm
high: 48mm
wall thickness: 5.3mm
|
Theoretical weight per meter: 10kg
Reference unit price: < $20 / kg
|
| Channel | 12# | 120*53*5.5 | 12.059 |
| Channel | 14#A | 140*58*6.0 | 14.535 |
| Channel | 14#B | 140*60*8.0 | 16.733 |
| Channel | 16#A | 160*63*6.5 | 17.24 |
| Channel | 16#B | 160*65*8.5 | 19.752 |
| Channel | 18#A | 180*68*7.0 | 20.174 |
| Channel | 18#B | 180*70*9.0 | 23 |
| Channel | 20#A | 200*73*7.0 | 22.637 |
| Channel | 20#B | 200*75*9.0 | 25.777 |
| Channel | 22#A | 220*77*7.0 | 24.999 |
| Channel | 22#B | 220*79*9.0 | 28.453 |
| Channel | 25#A | 250*78*7.0 | 27.41 |
| Channel | 25#B | 250*80*9.0 | 31.335 |
| Channel | 25#C | 250*82*1.1 | 35.26 |
| Channel | 28#A | 280*82*7.5 | 31.427 |
| Channel | 28#B | 280*84*9.5 | 35.823 |
| Channel | 28#C | 280*86*11.5 | 40.219 |
| Channel | 30#A | 300*85*7.5 | 34.463 |
| Channel | 30#B | 300*87*9.5 | 39.173 |
| Channel | 30#C | 300*89*11.5 | 43.883 |
| Channel | 32#A | 320*88*8.0 | 38.083 |
| Channel | 32#B | 320*90*10 | 43.107 |
| Channel | 32#C | 320*92*12 | 48.131 |
| Channel | 36#A | 360*96*9.0 | 47.814 |
| Channel | 36#B | 360*98*11 | 53.466 |
| Channel | 36#C | 360*100*13 | 59.118 |
| Channel | 40#A | 400*100*10.5 | 58.928 |
| Channel | 40#B | 400*102*12.5 | 65.208 |
| Channel | 40#C | 400*104*14.5 | 71.488 |
Application
Structural steel is widely used, mainly used for: various civil and industrial building structures; various large-span industrial plants and modern high-rise buildings, especially industrial plants in areas with frequent seismic activities and high-temperature working conditions; large load-bearing capacity and cross-section are required Large-scale bridges with good stability and large spans; heavy equipment;highways; ship skeletons; mine supports; foundation treatment and embankment
